Assignment 4: Twenty Questions

The Big Picture · The Medium Pictures · The Little Pictures

The Big Picture

See The Medium Pictures and The Little Pictures for the specifics of what you're going to do and how to proceed. The Big Picture is to give you a bird's-eye view of what's going to happen. I recommend you read this page through, start to finish, before you snarf any code!

Background
Twenty Questions is a classic guessing game. It goes like this: one player has a secret thing (usually a noun). The other player gets to ask yes-or-no questions in an effort to figure it out:

Alice: I'm ready to go.
Bob: Is it an animal?
Alice: Yes.
Bob: Is it smaller than a loaf of bread?
Alice: No.
Bob: Can you play games with it?
Alice: No!
Bob: Does it come in different colors?
Alice: No.
Bob: Is it native to Africa?
Alice: No.
Bob: Is it native to Asia?
Alice: No.
Bob: Is it green?
Alice: No.
Bob: Is it small?
Alice: No.
Bob: does it stand on two legs?
Alice: Sometimes? But not really. Let's say no.
Bob: Is it a herbivore?
Alice: No.
Bob: Can it jump?
Alice: No.
Bob: Does it make noise?
Alice: Yes.
Bob: Is it gray?
Alice: No.
Bob: Can it float?
Alice: No.
Bob: Does it have legs at all?
Alice: Yes.
Bob: Does it live in a forest?
Alice: Yes.
Bob: Does it have scales?
Alice: No.
Bob: Is it flexible?
Alice: No.
Bob: Is it worth a lot of money?
Alice: Yes.
Bob: Is it a bald eagle?
Alice: Yes!

This is, roughly, the transcript of me playing the game (as Alice) against 20q.net. Give it a try!

As mentioned in the bizarrely exhaustive Wikipedia article, Twenty Questions is an example of a binary tree: each node represents a question, and each child an answer, either "yes" or "no". 20q.net and other variations on the game are more-than-binary trees: they permit "maybe", "Don't know", and other kinds of answers. We'll be sticking to the simple yes-or-no version of the game.

In this assignment, you will implement a learning version of twenty questions: one that not only plays the game, but learns new objects when it loses. You'll be able to save your learned tree to disk, so that you can exchange it with a friend, or start up again where you left off.

Watch this video for an example of the game learning. It's also a good demo of a completed assignment.

Twenty Questions is all about working with trees: building them, manipulating them, writing them to disk, reading them from disk, and everything else.

The Medium Pictures

Model-View
Like Markov before it, Twenty Questions uses a Model-View architecture; this means we provide the graphical interface ("GUI"), and you write the logic. Note that the interaction between the model and view is more complicated than you've seen before; understanding how they communicate is an important part of this assignment.

You'll be writing code to do four main things:

Read a file that stores a Twenty Questions game tree. The tree represents what questions and nouns the game currently knows about.
Keep track of the state of the game (that is, where you are in the tree) as the player responds "yes" or "no" to various questions. This will let you add a new node to the tree (with an appropriate question) in the event that the program loses.
Keep track of what you need for working communication with the view. This can be tricky: see the little pictures for details.
Write a file containing a game tree to disk. In combination with item 1, this let you read an existing tree, play the game for a while (adding new things to the tree), and then save the new-and-improved tree. Snazzy!

Read and Write
Part of what you'll be doing is implementing reading trees from disk, and writing them to disk. This will be done using recursion: in particular, the pre-order traversal, which was discussed in class on October 24th. The code, once finished, is remarkably short: such is the power of recursion.

History
For historical reasons, the code calls the game "Animal" instead of Twenty Questions. You aren't limited to animals! It'll do whatever you want.

The Little Pictures

At this point, you should have a pretty good bird's-eye view of Assignment 4. The Little Pictures explain the steps you're going to take to complete it and how it will be graded.

Step 0:
Pause to collect your thoughts. Play a round or two of Twenty Questions on 20q.net. Snarf the code. Run GainMain; observe that it doesn't do very much yet. Read through, in detail, IAnimalGameModel.java, which is the interface you'll be implementing by completing AnimalGameModel.java. Also take a look at AnimalNode, which implements a single node in our Twenty Questions game tree.

Step 1: File I/O
As provided, the game doesn't do very much. The first thing you'll need to do is implement reading game trees from a file. When you run the game and select File -> Open File or File -> Open URL, the initialize method of AnimalGameModel is called. The Java Scanner type (what's passed as an argument) provides a nextLine method that will iteratively pull lines from whatever file you've opened.

To get file reading working, you'll need to do (at least) these things:

Add (to AnimalGameModel) the instance variable (or variables) necessary to store your game tree. We recommend two AnimalNodes: one called myRoot that always points to the root of your hame tree, and one called myCurrent that points to the current question. These aren't the only things you'll need to store, but they are a start.
Write a recursive helper method for reading in the game tree. Note that the tree was written out using a pre-order traversal, with interior nodes marked as discussed in class on October 24th. One extra thing: lines that begin with "//" should be ignored completely.
Have initialize call your recursive helper with the appropriate parameters, and set up your instance variables.

A few things to remember:

Lines corresponding to interior nodes start with "#Q:".

Your helper method will return an AnimalNode. I suggest you write it by completing this code:

  private AnimalNode readHelper(Scanner s) {
    String line = s.nextLine();
    if (...line is a leaf...) {
      // Construct a leaf AnimalNode from line, and return it.
    }

    // Make a recursive call to read the left subtree.
    // Make a recursive call to read the right subtree.
    // Construct the resulting AnimalNode and return it.
  }

To write your game tree to a file, you'll need to implement the write method of AnimalGameModel. This method is called by the view whenever you choose File -> Save. Dealing with creating a new file is taken care of for you; all you need to do is write your tree to the provided FileWriter object. FileWriters have a write method that takes a String as input. To start a new line, write the string "\n"; this is Java's syntax for the newline character. For example:

// Without a new line; produces
// PotatoTomato
writer.write("Potato");
writer.write("Tomato");
// With a new line; produces
// Potato
// Tomato
writer.write("Potato\n");
writer.write("Tomato");

Write your tree out using a pre-order traversal (to match your read-in code).

You should test your write-out and read-in code by reading in the provided animals.txt, writing it out to a different file, and then comparing the two files.

To enable the buttons on the GUI, you should call myView.setEnabled(true) right after you've finished loading your game tree.

Step 2: Playing Twenty Questions

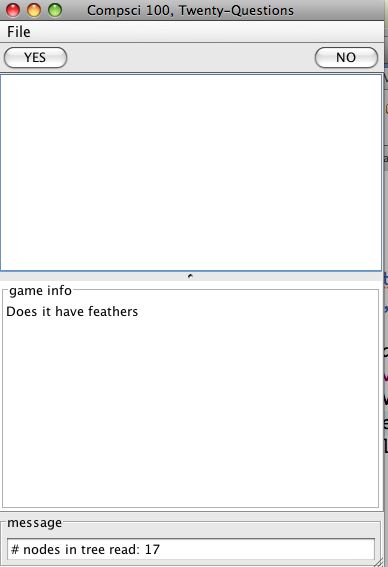

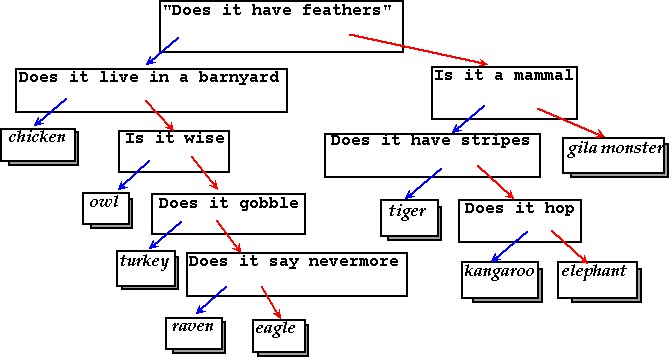

Here's an example of a game tree (we saw this one in class): This is also the tree represented by the provided animal.txt. Here's an example of somebody playing the game with this tree; in this case, the player is thinking of "chicken".
It has feathers, so I click "yes"

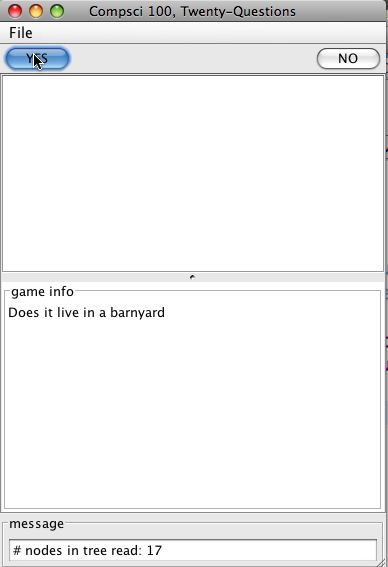

It lives in a barnyard, too. I click yes again...

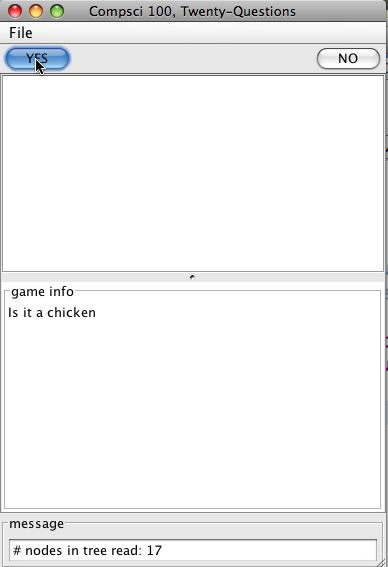

That's my animal! I click yes yet again...
Victory to the computer!

Understanding how the model (code you write) and the view (code we provide) interact is vital to getting this right. This is documented in IAnimalGameModel.java, and goes like this:

The player opens a file using the GUI. This calls initialize on the model, and is what you dealt with in part 1.
The player starts a new game. They can do this using File -> New Game. Important note: loading a file should automatically start a game! This is done by calling the model's newGame method, either from the view calls (player input) or automatically (as part of initialize). The newGame method will need to set up whatever instance variables the model needs to keep track of the state of the current game, and set them to initial values

The model asks a question. This is done by sending a String to the view's update method, like this:

  StringBuilder sb = new StringBuffer();
  sb.append("Is it a walrus?\n");  // Note the use of "\n" for a newline!
  myView.update(sb.toString());

The player clicks YES or NO. The view calls the model's processYesNo with the appropriate value. The model updates its internal game state (myCurrentNode, plus anything else you add) according to what the player said.
Steps 3 and 4 repeat until the computer guesses correctly, or until the computer runs out of game tree without guessing correctly. If the computer won, it should send a victory message to the view using the showDialog method. If it lost, things are more complicated: see below.
Your life will be easier if you get step 2 working before you do step 3.

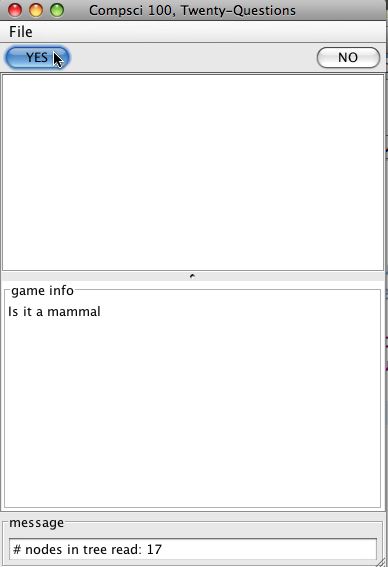

Step 3: What if the computer loses the game? Here's another sequence, in which I'm thinking of a lion. We'll start on the second question, after I've already said "no" to feathers.
It is...

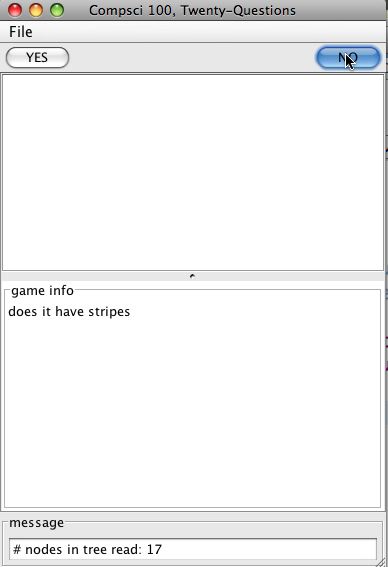

Lions are entirely stripe-free.
Lions: More Hamlet, less hopping.

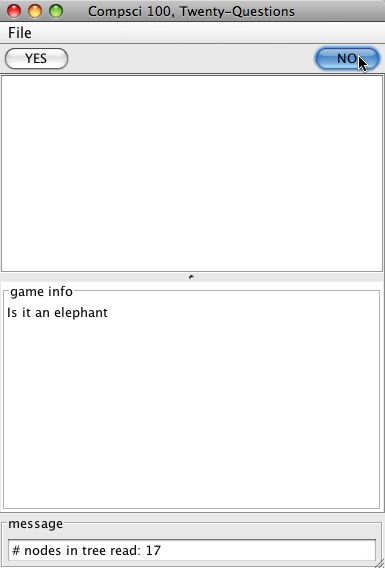

Not an elephant!
Now something more complicated has to happen: we need to add a node to our game tree. To add a node, we need two things: the the thing the player was thinking of (in this case, a lion), and a question that disambiguates that thing from the computer's guess. Is this case, we'll use "Does it have tusks?" as elephants do, and lions don't.

For the game to do the right thing in this case requires a fairly complex model-view interaction. First, consider how the model knows that it needs new information: it has landed at a leaf node in the tree, and still been told no. Now it needs to do several things:

Display the path down the tree to the player. This is so that the player doesn't use a question that contradicts something that's already been seen higher up the tree. To display the path, construct a String storing it, and then call myView.update with that String. For example:
```
  StringBuilder sb = new StringBuffer();
  sb.append("You said no to feathers.\n");  // "\n" again...
  sb.append("You said yes to mammal.");
  myView.update(sb.toString());

```
Displaying the tree is going to require storing some instance variables; just knowing the root of your tree, and the current leaf, is not enough to reconstruct the path; you'll need to store it.

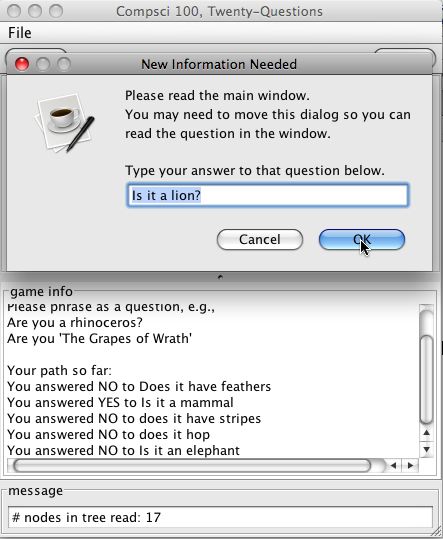

Request new information from the player: in this case, what the right question should have been, seen below.
This is done by calling the view's getNewInfoLeaf method.
Now, the tricky part. The user types in their question ("Is it a lion?"), and clicks OK. When they do this, the view (which handled the mouse click) calls the model's addNewQuestion method with the typed-in String as an argument. From the model's point of view (that is, your point of view), this looks slightly strange: you call a view method from one place in your code (where you call getNewInfoLeaf), and you get the answer back somewhere else (as an argument to addNewQuestion). It looks like you've jumped from one method to another; that's because the view has jumped you there! Handling this correctly means storing some extra state in your model just before you call getNewInfoLeaf, so that you can use that state in addNewQuestion.
You're halfway there. At this point, you've queried the user for the correct answer to their question ("lion"). Now, you'll need to add a differentiator: a question that tells lions and elephants apart. This process has the same flavor as the previous step. First, the model calls the view's update to ask for a differentiator. Then the model calls getDifferentiator, which pops up a dialog box for the player to type into. The model then calls the view's addNewKnowledge with whatever the player typed. As before, the model calls a view method one place, and gets the result back somewhere else. The figure shows the flow back and forth between the model and view over the course of the game; it may help clear things up.
Finally, once you've added a new node, start a new game!

Grading
The entire assignment is graded on a ten-point scale. This assignment is weighted by a factor of 1.5. Your correct implementation of tree input and output is worth three points; your correct implementation of twenty questions, including adding nodes to the tree, is worth five points, and your README and code style are worth two points.

Submission
Submit your code, analysis, and README using Ambient or websubmit. Please make sure you submit the entire assignment each time you submit, including any code we provided, even if you haven't changed it. You can submit as many times as you'd like; we'll take the last one.

The README
Like every assignment (but not APTs), you should include a README text file in your submission. It should include:

Your name.
When you started and finished the assignment, and your best estimate of how long it took.
The credits: who helped you. Recalling the collaboration policy from the syllabus, be sure to give credit where credit is due. Also, take credit where it's due: if you helped someone else, say so! If you didn't talk to anybody about this assignment, say that.
Anything we've specifically said should be included in the README.
Any feedback you have about the assignment itself; we're always trying to make these assignments better. If you'd rather that feedback be anonymous, there's a link for that on the course page.

You can add a text file to your code using File -> New -> Untitled Text File in Eclipse.

Code Style
Fact: code is hard to read.
How you lay out your code, and your program, make a big difference in how easy it is to understand. There are (at least!) four people who need to understand your code: you (while writing it), anybody you ask for help, your grader, and you (six months from now, when you look at it to figure out how you did something). While the following rules are not set in stone, they provide a good place to start:

Think about how your code is going to be organized before you've written it. Good design matters!
Give your classes, variables, and methods descriptive names. Naming your variables foo and bar doesn't say much; xPosition and yPosition are much better.
Use Java's conventions on naming. ClassesAreNamedLikeThis: words are run together, and each word is capitalized. Similarly, methodsAreNamedLikeThis: words run together, and all but the first word are capitalized. Variables are named like methods.
Indent your code properly. Roughly speaking, this means "everything inside a curly brace gets indented one extra level." See the code we provide for how this should look. To make this easy, Eclipse can do it for you: select your code with the mouse, and then do Source -> Correct Indentation.
Don't let your lines get too long. Although Java doesn't care how long your lines are, long lines are much harder to read. The closest thing there is to a universal standard is 80 characters. Eclipse makes this easy, too: in Preferences -> Text Editors, turn on "Print Margin" and set it to 80. That will add a vertical line at the 80-character mark.

Remember: easy-to-understand code makes your grader happy. Happy graders are friendly graders!
